DrawerAlign™ D32 drawer slide jig

Every slide screw marked in one press.

Square it to the cabinet, line up the window with your pencil mark, press. Works with undermount and side-mount slides.

Buy on Amazon Will it fit my cabinets?

No drill
No clamps
No templates
Anodized aluminum

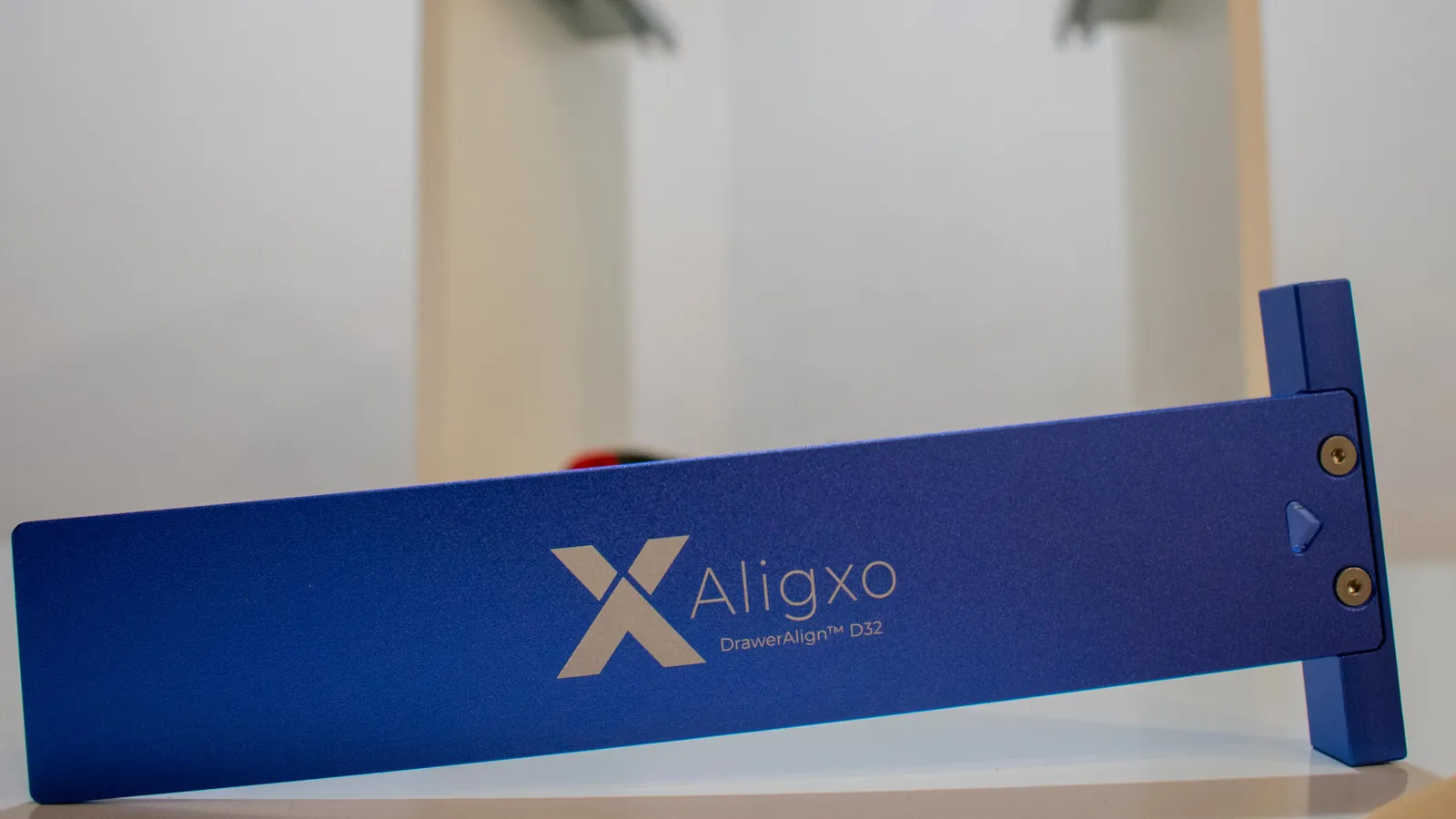

DrawerAlign D32 standing in front of a cabinet

What it does

DrawerAlign D32 is a marking jig for drawer slides. Built-in pins press the screw points into the cabinet side, so you don't need a drilling guide, a separate template or clamps. The same tool marks the drawer side too.

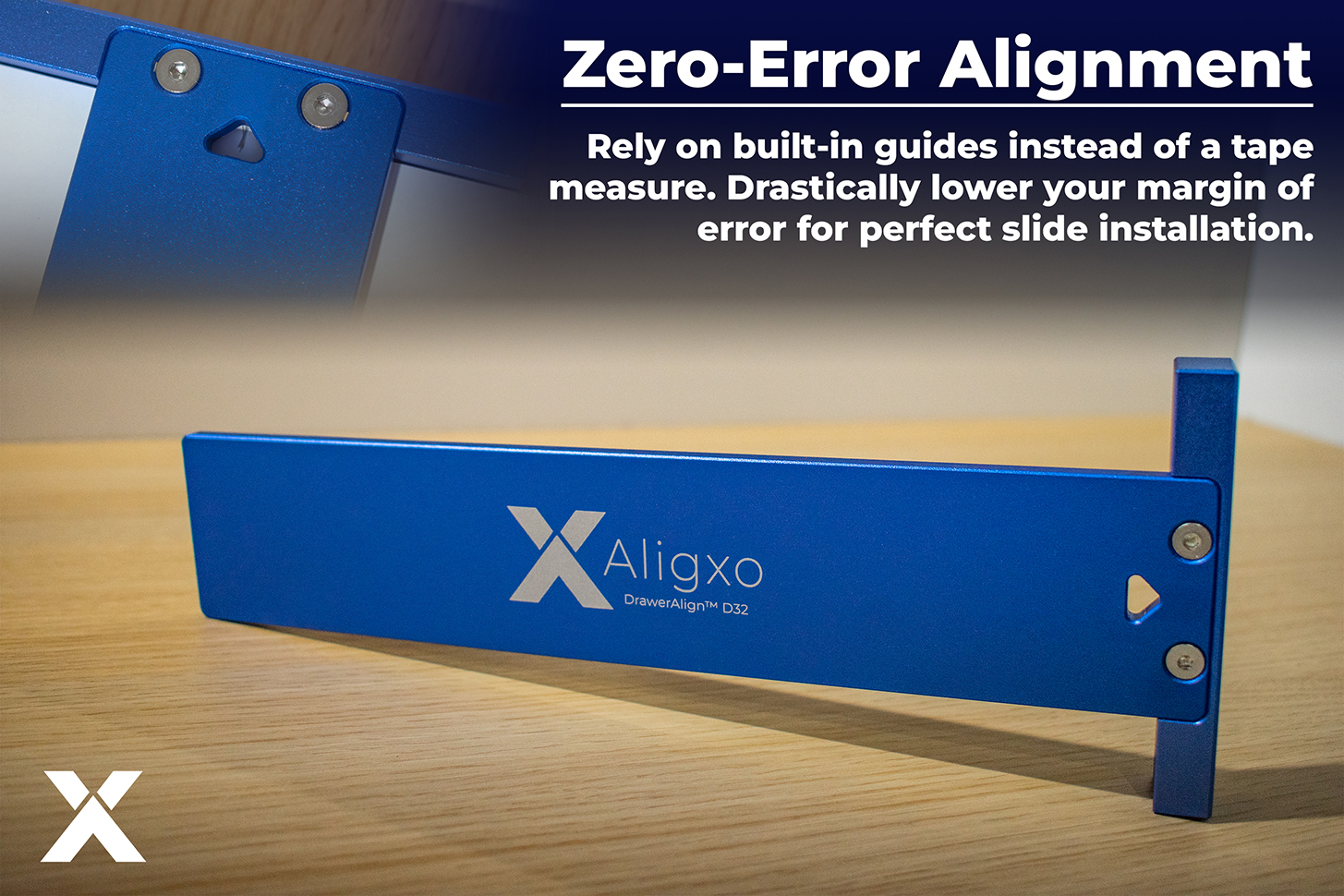

Triangular window lines the tool up with your pencil mark
Marking pins leave the screw points with one press or tap
Square edge registers against the cabinet front for repeatable spacing
Lower edge draws a straight reference line on the drawer side
Anodized aluminum body made for daily jobsite use

Will it fit your project?

Check your slide type and cabinet construction before you buy.

DrawerAlign D32 compatibility
Undermount (concealed) slides	Yes Blum, Hettich, Grass, DTC and similar
Side-mount ball-bearing slides	Yes Accuride, Everbilt, Liberty and similar
Slide length	Yes 9", 12", 15", 18", 21" and 24"
Drawer fronts	Yes Inset and overlay
Frameless (European) cabinets	Yes Direct fit
Face-frame cabinets	With spacer Only with a wood spacer or blocking behind the frame
Open-frame cabinets	No No side panel to mark

For inset or standard installs, use the slide hole your slide manufacturer's guide specifies.

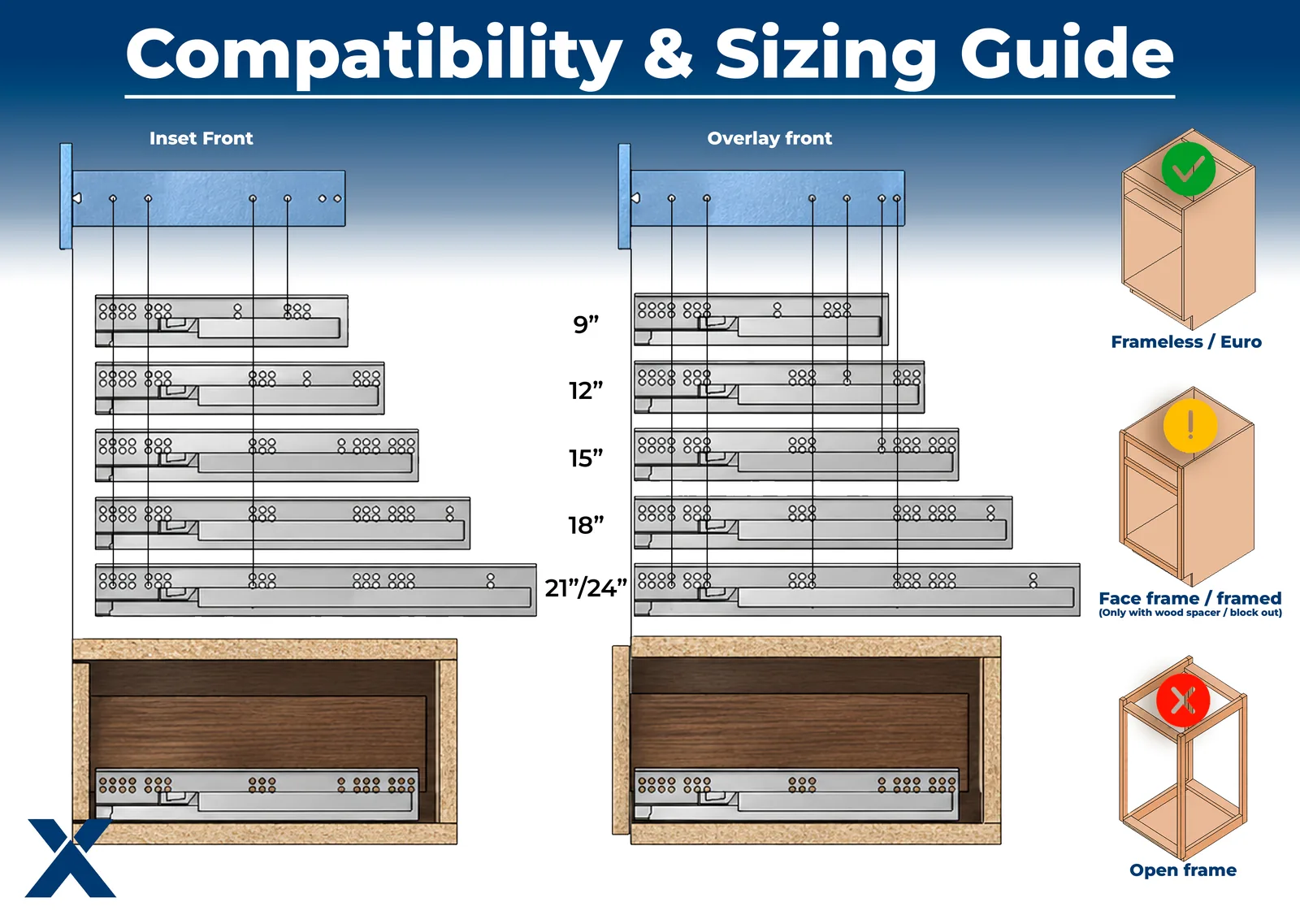

Compatibility and sizing guide showing where the D32 pins align with 9 to 24 inch slides for inset and overlay fronts — Pin positions for each slide length. Select to enlarge.

Up close

Hands pressing the DrawerAlign D32 against a cabinet side panel — Square to the cabinet edge, then press.

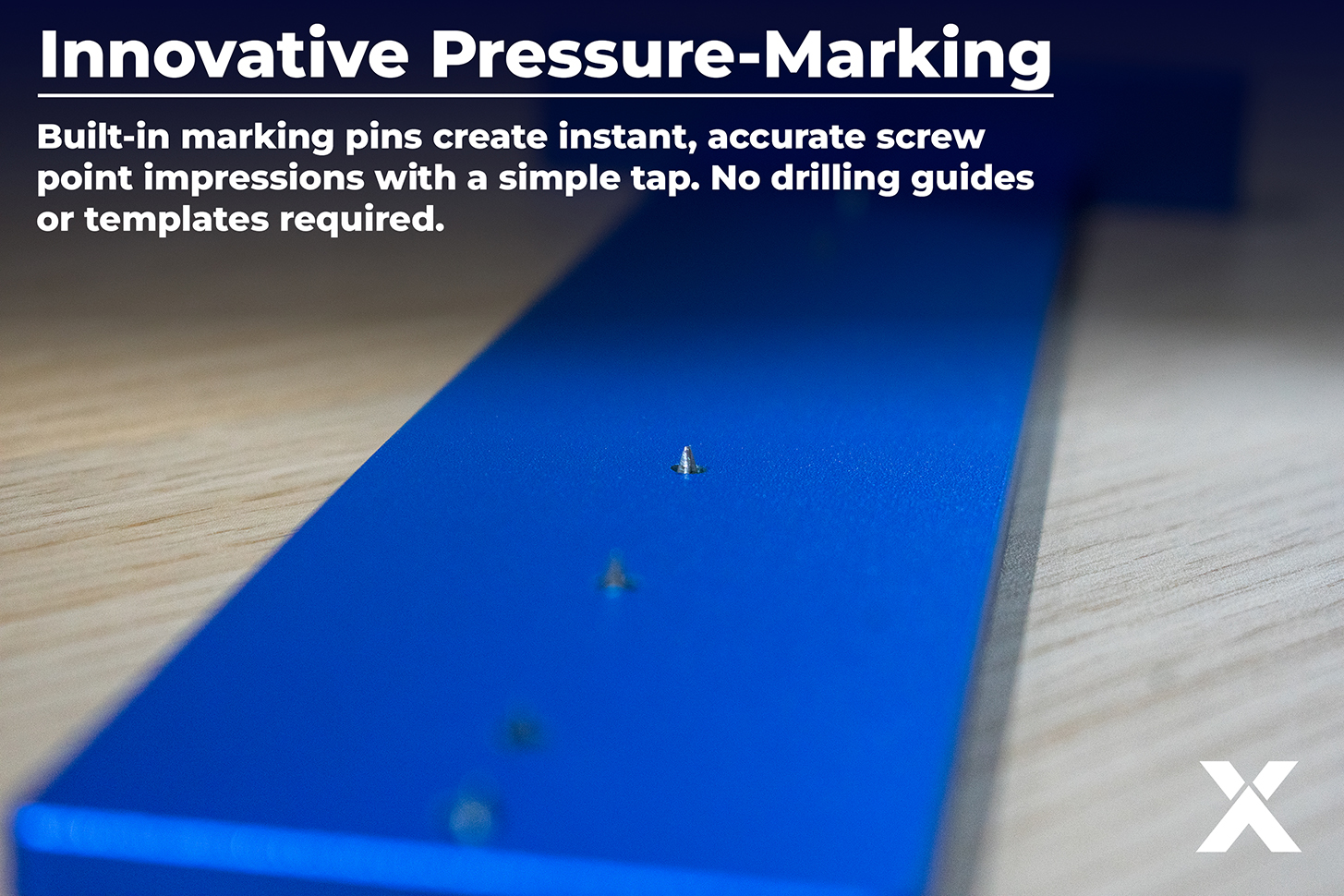

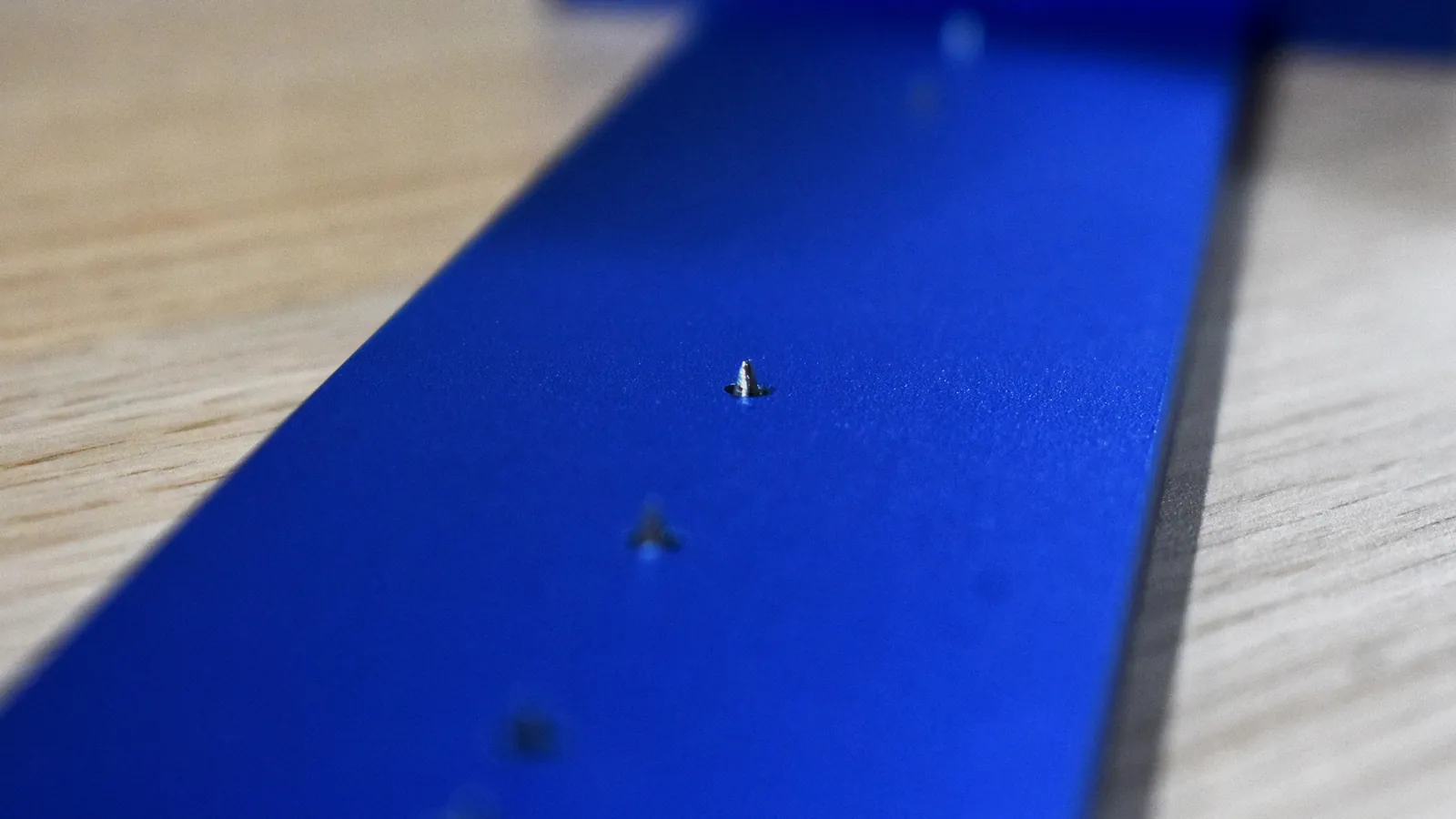

Macro of the marking pins on the D32 blue aluminum body — Marking pins leave the screw points.

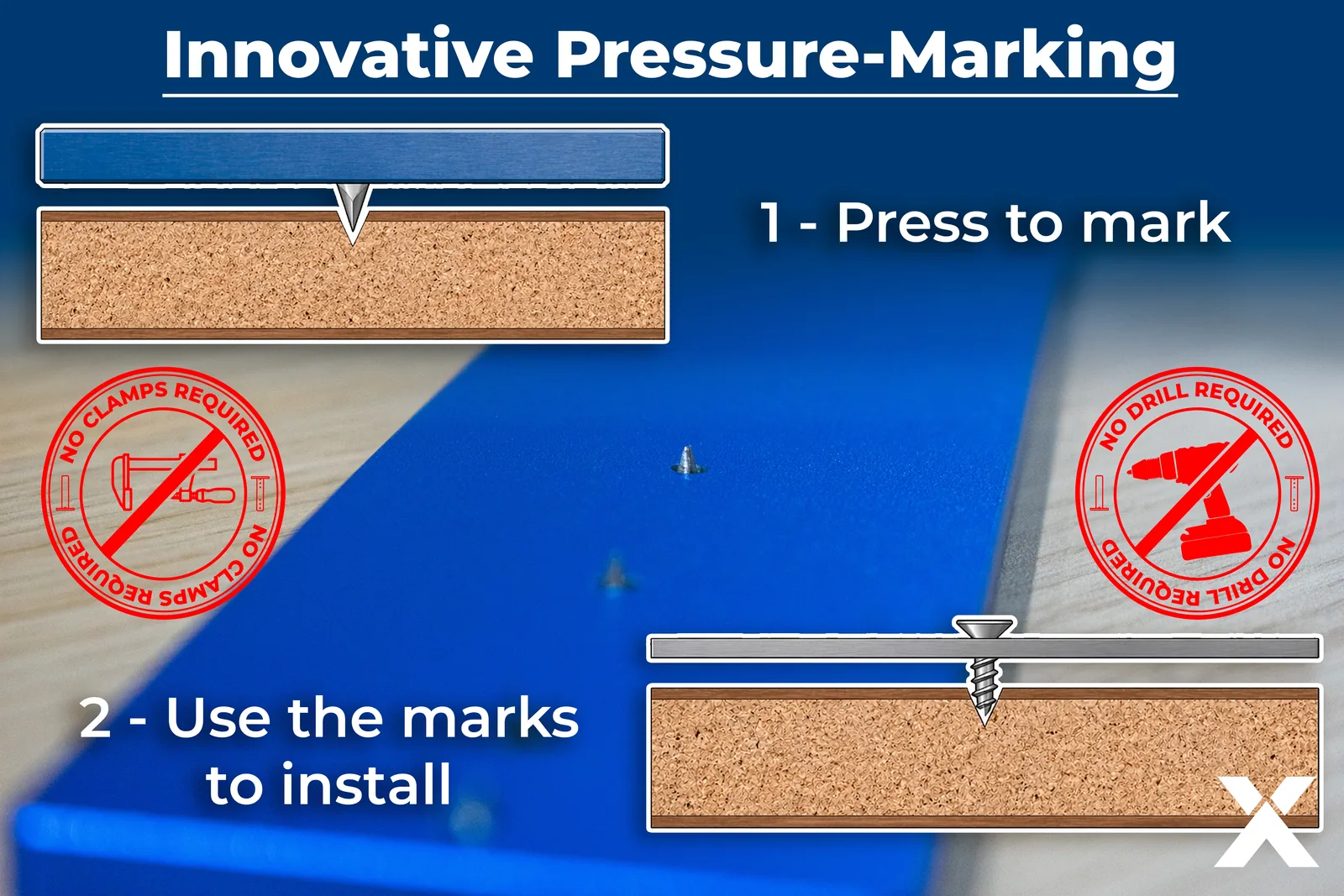

Diagram: press to mark the panel, then use the marks to install the slide — Press to mark, then screw on the marks.

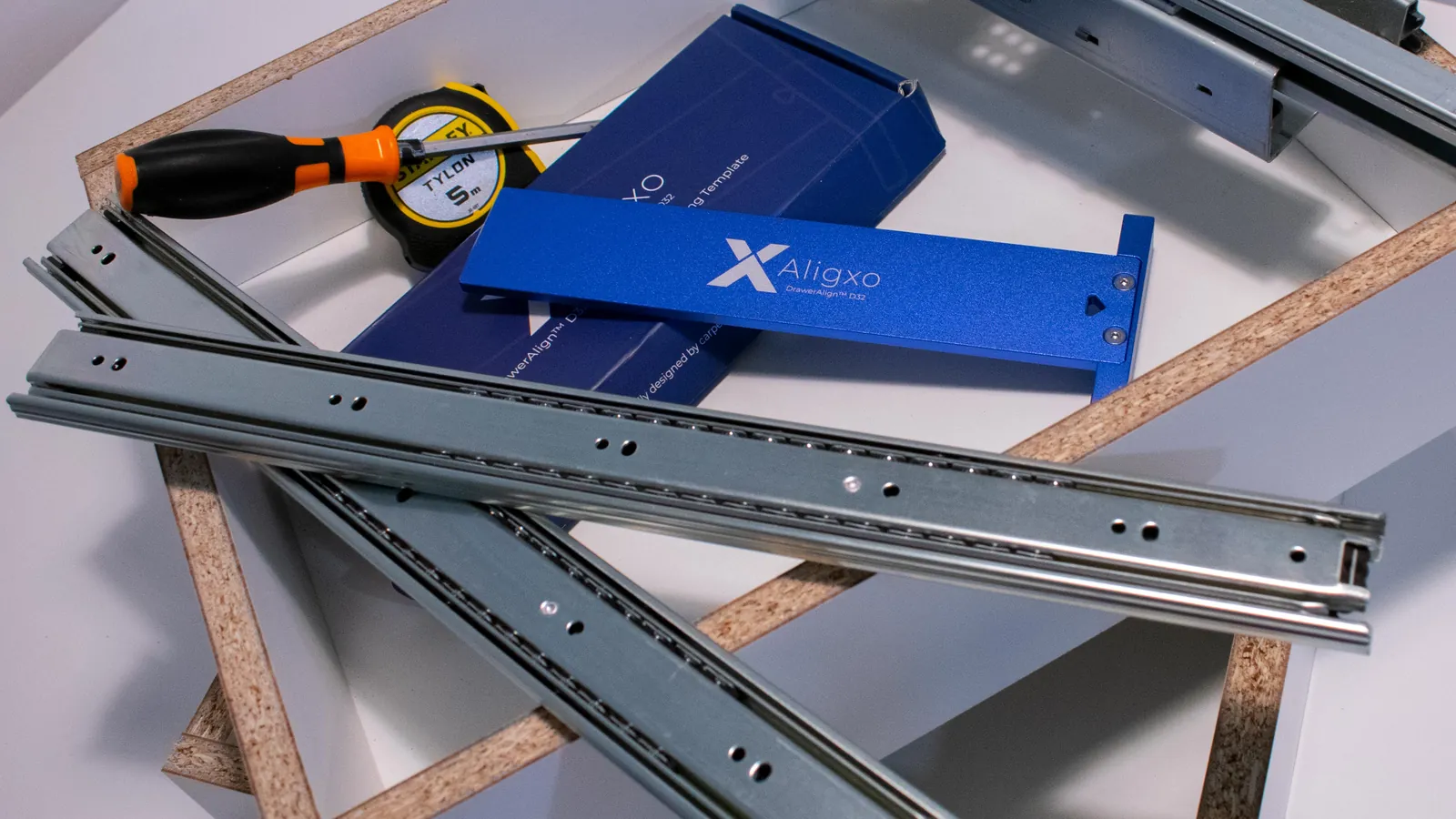

DrawerAlign D32 with ball-bearing side-mount slides, tape measure and screwdriver — Works with side-mount ball-bearing slides.

DrawerAlign D32 next to its box, thank-you letter and bilingual user guide — Ships with an English and Spanish guide.

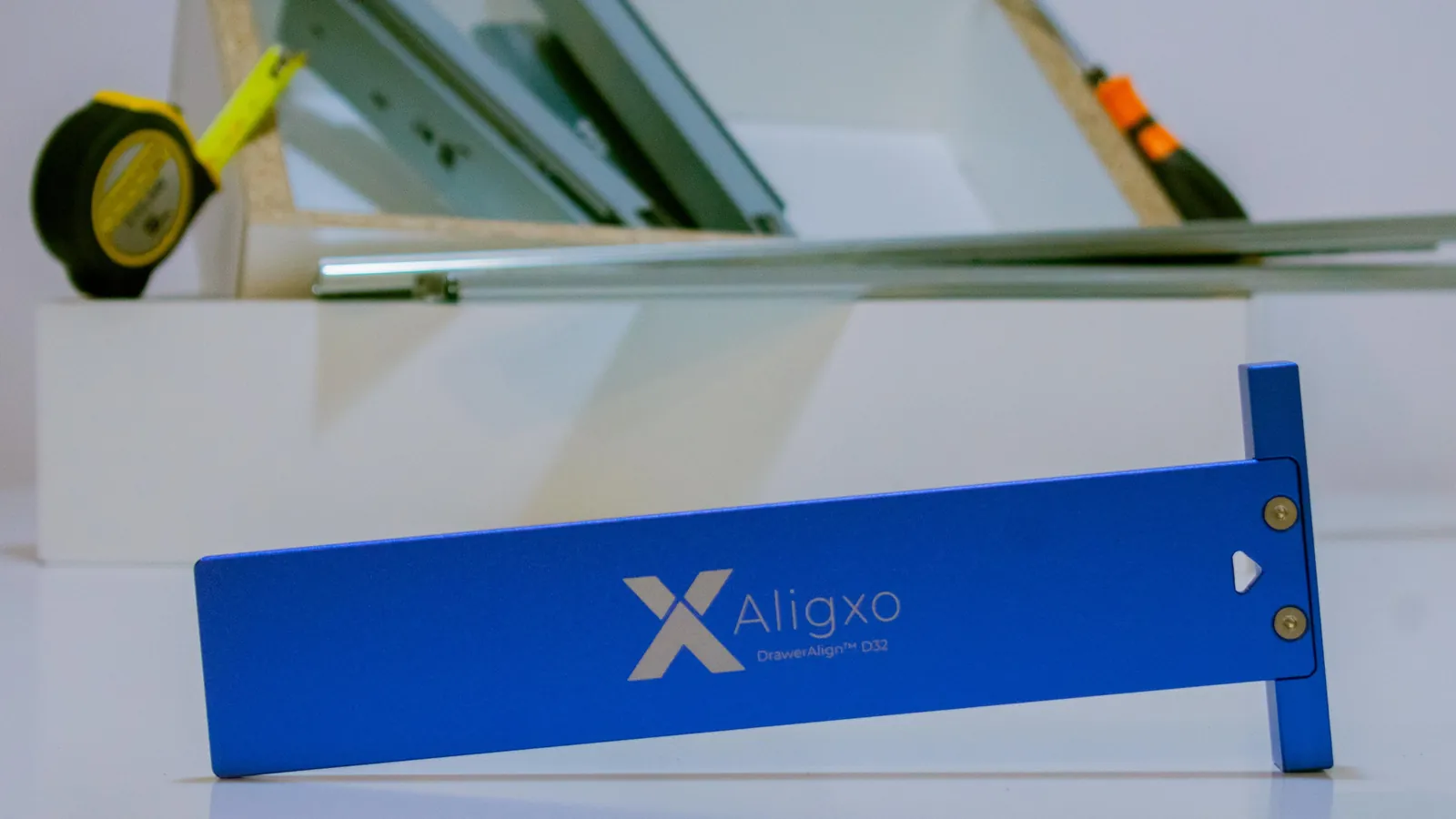

DrawerAlign D32 standing in front of a box of drawer slides — One piece of anodized aluminum.

How to use it

A full install, start to finish.

Questions

Do I still need a tape measure?

Once per drawer. You measure and pencil-mark the slide height on each side of the cabinet. The D32 handles everything after that: alignment, screw positions and spacing.

Does it work with face-frame cabinets?

Yes, if you add a wood spacer or blocking so the slide mounts flush with the face frame. The D32 needs a flat side panel to register against and mark. It doesn't work on open-frame cabinets.

Which slides does it support?

Concealed undermount slides such as Blum, Hettich, Grass and DTC, and ball-bearing side-mount slides such as Accuride, Everbilt and Liberty, from 9" to 24". See the compatibility guide.

Can I mark the drawer side too?

Yes. Rest the lower edge on the bottom of the drawer box, mark through the triangular window, and draw a straight line along the tool edge. If the drawer front is already on, flip the tool so the pins face out.

Inset or standard install: which slide hole do I use?

The D32 marks the positions for both. Pick the hole your slide manufacturer's installation guide specifies for your drawer type.
